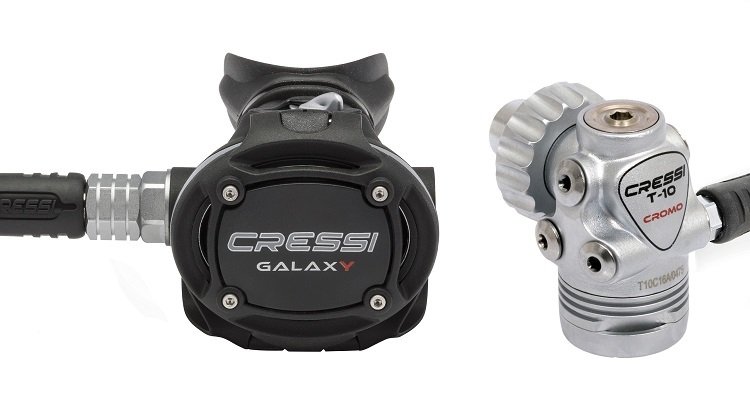

T 10 Sc CromoGalaxY Regülatör

Technical Features 1st stage

• Hyper-balanced diaphragm (Watertight chamber on T10-SC)
• 2 HP 7/16 UNF ports
• 4 MP 3/8 UNF ports
• Operating pressure: 300 BAR (4350 PSI) DIN Version, 232 BAR (3365 PSI) International version
• Calibration pressure: 10 BAR
• High-capacity conical filter in chemically nickel-plated spherical bronze
• Removable nozzle in AISI 316 steel
• Hyper-balancing system
• Anti-pressure drop pneumatic spring
• Stainless steel calibration spring with micropeening treatment
• Low-friction technopolymer slider shaft
• Body protection in polyurethane thermoplastic
• Quantity of air supplied: 4500 l/min
• Weight, INT version: 720 g | 25.4 oz
• Weight, DIN version: 602 g | 21.2 oz

Technical Features 2nd stage

• Pneumatically balanced
• Adjustable Venturi valve
• Patented elliptic diaphragm
• Patented reduced friction lever
• No-injector air release system
• Internal heat exchange system
• Cam-lock cap lock
• Anti-noise component made of engineering plastic
• Detachable lip made of engineering plastic
• Removable mechanical parts
• Weight without the hose: 182 g | 6.4 oz
