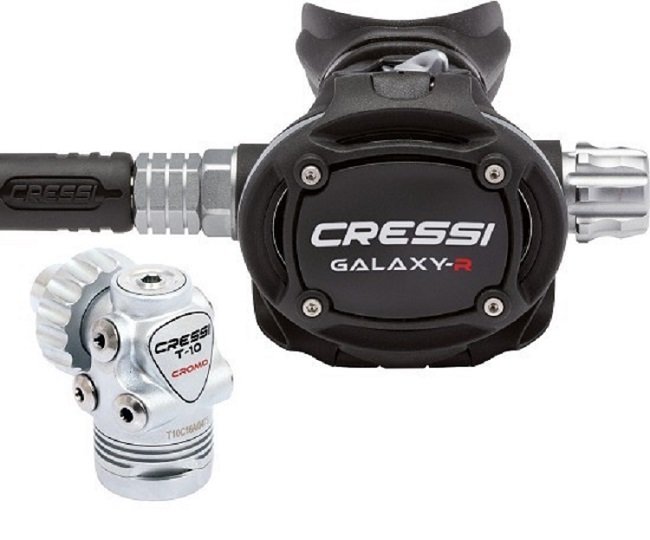

T 10 Sc CromoGalaxy AdjuStable Regülatör
TECHNICAL FEATURES 1st STAGE
- Hyperbalanced diaphragm (Watertight chamber on T10-SC)
- 2 7/16” HP ports UNF
- 4 3/8” LP ports UNF
- Operating pressure:
• INT version: 230 BAR | 3,336 PSI
• DIN version: 300 BAR | 4,351 PSI
- Calibration pressure: 10 bar | 146 PSI
- Body coated with Cromo finishing
- High-capacity conical lter in chemically nickel-plated spherical bronze
- Removable nozzle in AISI 316 steel
- Hyperbalancing system
- Anti-pressure drop pneumatic spring
- Stainless steel calibration spring with micropeening treatment
- Low-friction technopolymer slider shaft
- Body protection in polyurethane thermoplastic
- Quantity of air supplied: 159 cu ft/min | 4,500 l/min
- INT version weight: 25.4 oz / 720 g
- DIN version weight: 21.2 oz / 602 g
TECHNICAL FEATURES 2nd STAGE
- Pneumatically balanced
- Adjustable Venturi
- Adjustable inhalation effort
- Patented elliptical diaphragm
- Patented low-friction lever
- Air delivery system without injector
- Adjuster knob coated with dual OR
- Internal heat exchanger
- Cap opening with Cam-lock
- Noise-absorbing technopolymer body
- Removable technopolymer de ector
- Removable mechanics
- Weight without hose: 7.1 oz | 202 g
